Details

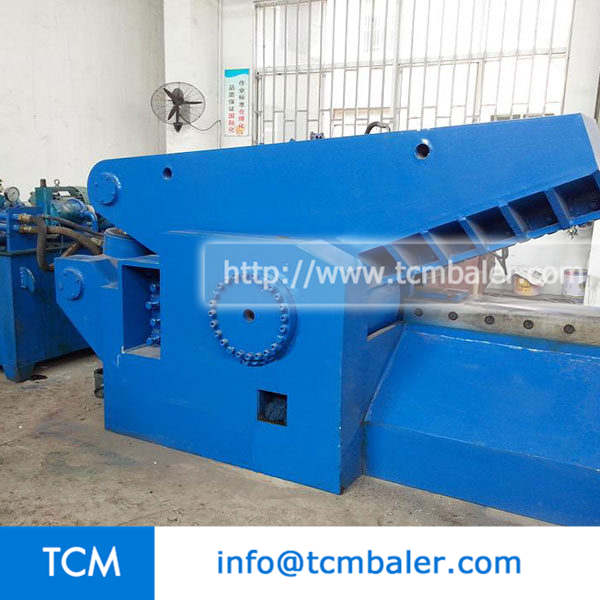

TCM-AS series hydraulic alligator metal shears are applied in recycling companies, automobile dismantling plants, smelting & casting industry to cold-shear section steel and metallic structural parts into acceptable furnace charges. AS series alligator metal shears can work automatic continuous lyor manual single operation,which are the best equipment for light furnace charge and steel cutting.
Features of TCM-AS series alligator metal shear:
(1)Adopting hydraulic drive, easy operation and easy maintenance, it's safe and reliable.
(2)Shear force 9 grades from 63 to 500 tons; Blade length 400mm, 600mm, 700mm, 800mm, 1000mm,1200mm, 1600mm, 1800mm. For about 10 models for your choice.
(3)No footing bolts needed in installation: Diesel engine can be equipped for power.
Application
Parameter
| Model | Max.Cutting force(kn) | Maximum Opening(mm) | Blade Length(mm) | Shearing Frequency(times/min) | Max.Cutting size(mm) | Power(kw) |
|---|---|---|---|---|---|---|
| AS630 | 630 | 800 | 800 | 10-14 | 30×30,Φ35 | 7.5 |

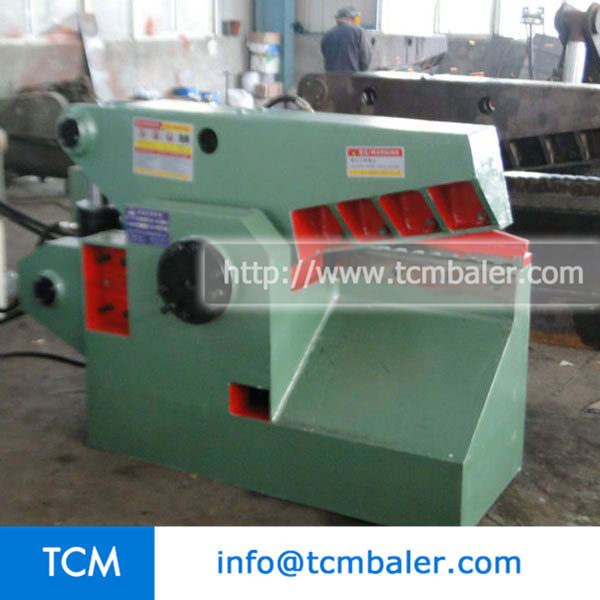

| AS1000 | 1000 | 320 | 800 | 10-14 | 40×40,Φ45 | 7.5 |

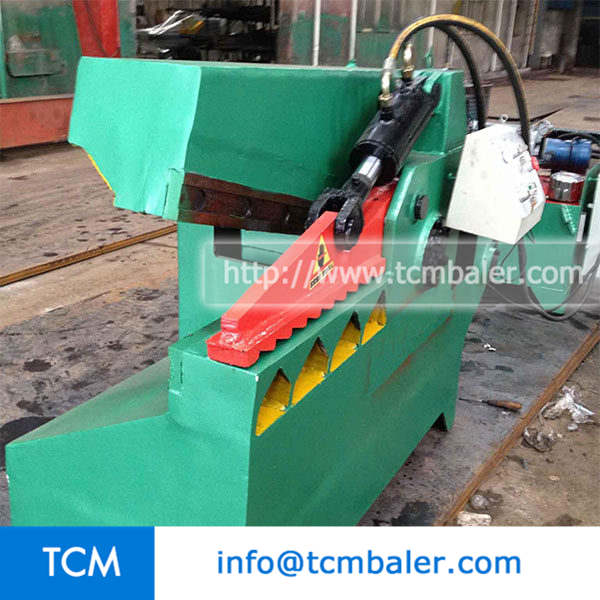

| AS1200 | 1200 | 280 | 600 | 10-13 | 45×45,Φ50 | 15 |

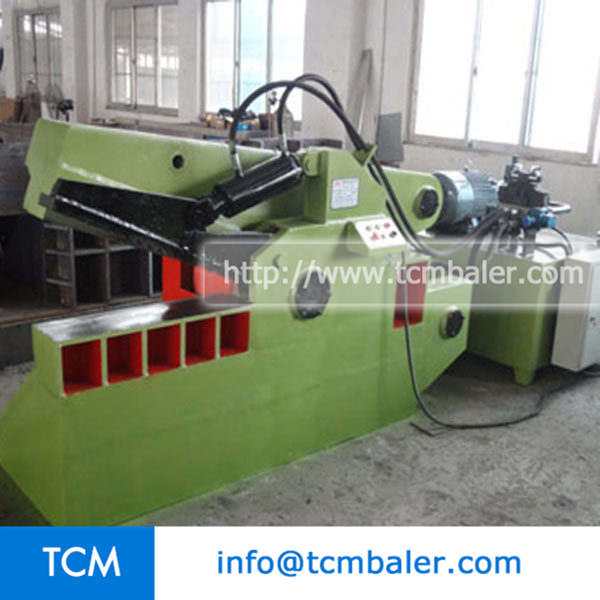

| AS1300 | 1300 | 320 | 600 | 10-13 | 45×45,Φ50 | 18.5 |

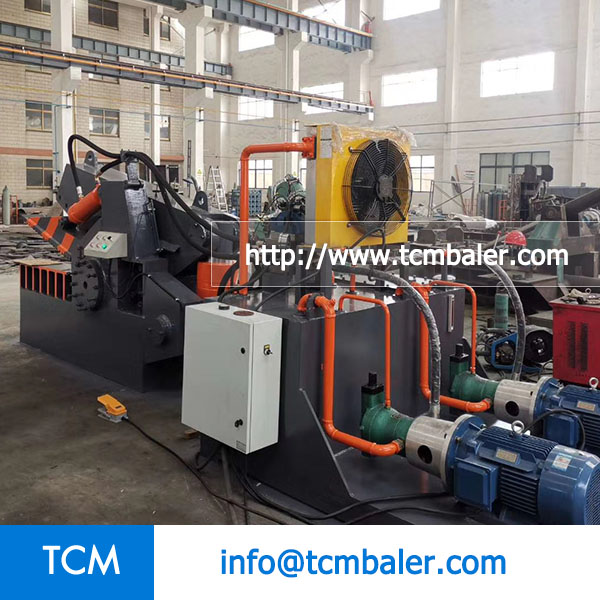

| AS1600 | 1600 | 350 | 800 | 10-12 | 55×55,Φ63 | 18.5 |

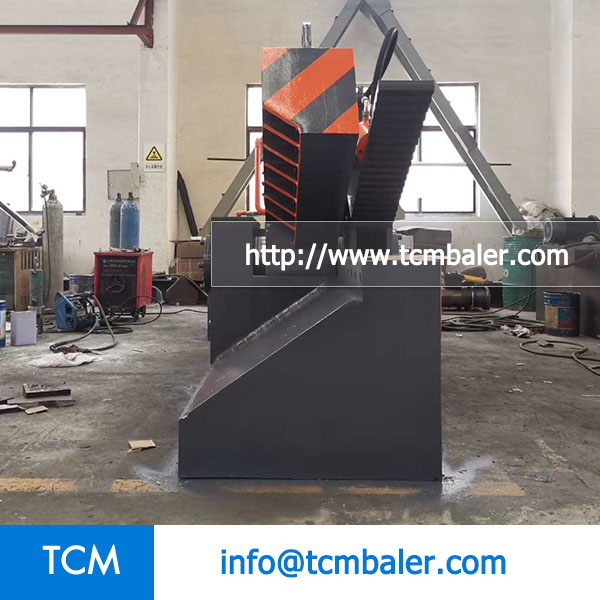

| AS2000 | 2000 | 380 | 800 | 9-12 | 60×60,Φ65 | 22 |
| AS2500 | 2500 | 450 | 1000 | 8-12 | 70×70,Φ75 | 30 |
