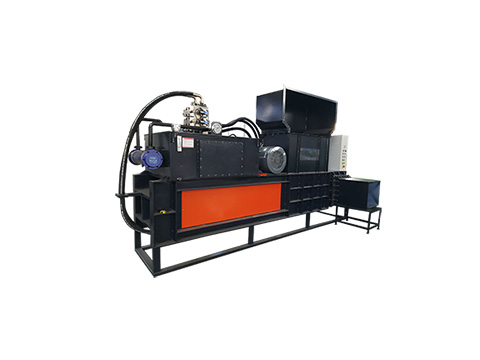

TCM-HPAC40 Continuous Full-automatic horizontal compactor

TCM-HPAC series fully automatic horizontal baler, applicable for recyclers handling large daily amount of soft waste such as cardboard/OCC ( popular as cardboard baler or OCC baler ) , paper, plastic film, natural fiber, textile waste, soft plastic packag

  • Series:HPAC
  • Payment:T/T
  • Port:ShangHai
Click To Inquire
  • Details
  • Application
  • Parameter

Details

TCM-HPA40C fully automatic horizontal baling machine is capable of processing card, paper, plastics and alfafa and other fiber materials without preconditioning such as straw, lucerne. The main characteristic of the baling press machine is the tying system which can be vertical or horizontal with press pressure 20-40 tonne and a bale weight of 440kg. Production up to 2.5 tonne per hour. Another characteristic that this model has is the possibility to divide a bale in two. HPA40C packing baler machine incorporates a system to divide bales and allows easy manual handling of the bales.

This packaging bale machine is the smallest one in all models. So it is the cheapest one for you to choose and help your bussiness.

Parameter

Model TCM-HPAC40
Hydraulic power 40ton
Bale Size (W*H*L) mm 720*720*(300-1500)
Feeding Opening (L*W) mm 1150*680
Packing density (kg/M³) 350-450
Strapping Number 4
Capacity 1.5-2.5 tons/hour
Motor(Kw/Hp) 15Kw/20Hp
Main Machine Size (L*W*H) mm 6500*3200*1950
Machine Weight (Ton) 8
