Details

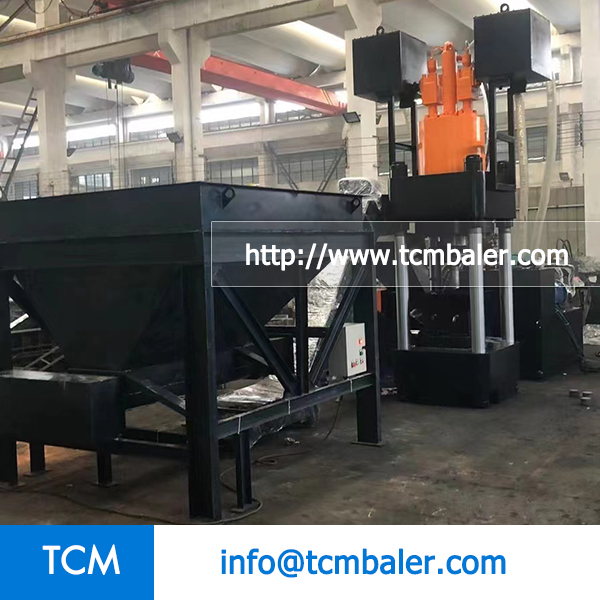

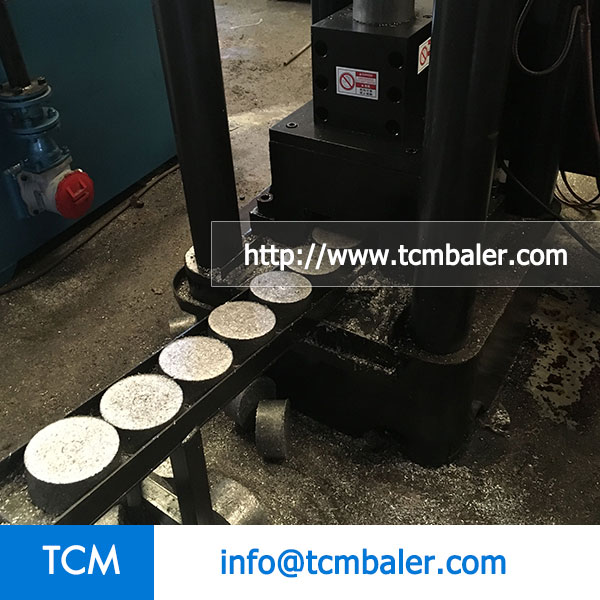

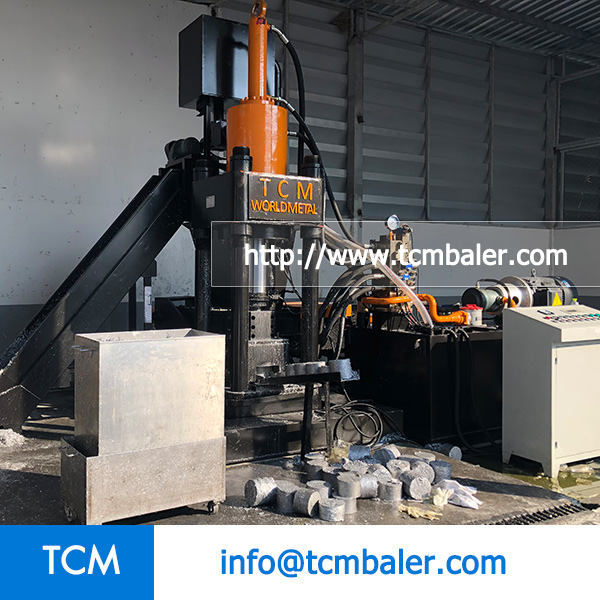

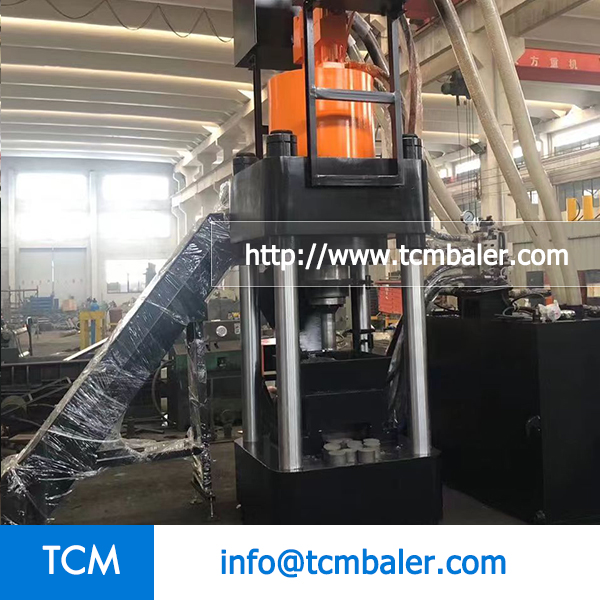

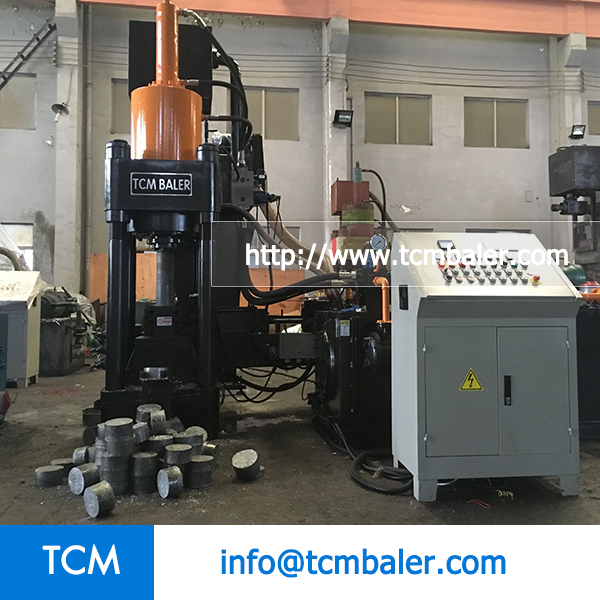

TCM-XB series briquetting machine have high efficiency, economical and continuous. They can suitable to compress metal sawdust (steel, cast iron, aluminum & copper) into high density briquettes to reduce burning loss during smelting, cast iron briquettes, can substitute pig iron as raw material. it can push the metal block continuously.
Simple and proper structure and customizable. Simple and stable structure to keep the briquetting press working normally, three-phase voltage, simple operation and Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
PLC button control, convenient for operation. With PLC program and electric button control, one time to complete compression and disposable bag by one button, Increased material controller can make the machine automatically start compress automatically. Feed material by manually or automatically, high degree of automation, saving manpower.
Adopt foreign famous seal, valve, electric components Adopt the German hydraulic technology to save energy and protect environment, and the YUKEN valve group, Schneider appliances, seals are imported form British to ensure without phenomenon of oil leak and improve the service life of the cylinder.
Application
Parameter
| Model | Motor Power(kw/hp) | Hydraulic Power(ton) | Control System | Efficiency(block/min) | Bale Size(mm) | Bale weight(kg) | Output(T/8H) | Machine size(mm) |
|---|---|---|---|---|---|---|---|---|

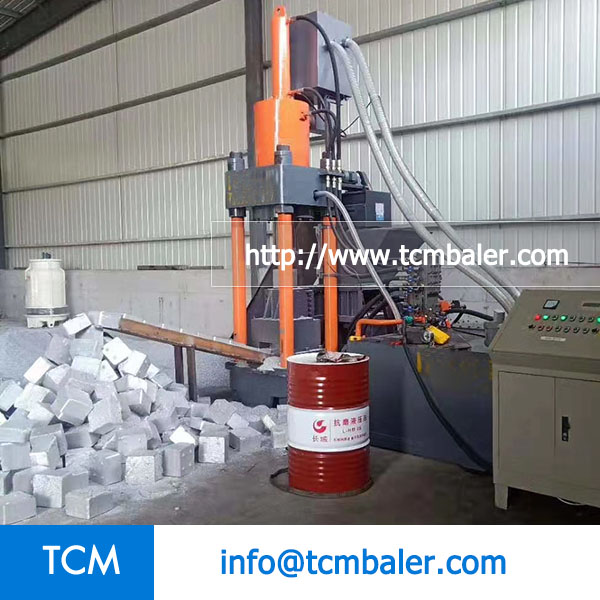

| XB200 | 15/20 | 200 | PLC | 4 | Φ80*（60-80) | 1.5-2 | 3.5-4 | 2200×840×3000 |

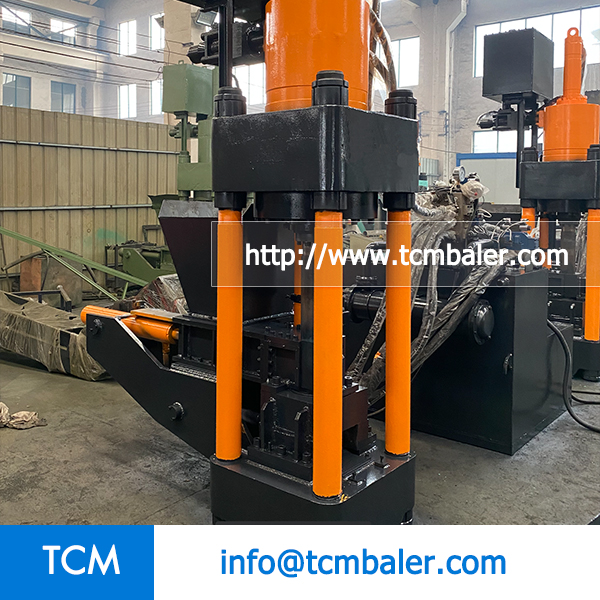

| XB250 | 18.5/25 | 250 | PLC | 5 | Φ80-110*(60-100) | 2-3 | 3-6 | 2200×900×3200 |
| XB315 | 30/40 | 315 | PLC | 5 | Φ90-110*(70-100) | 3-4 | 6-9 | 2200×900×3200 |
| XB360 | 30/40 | 360 | PLC | 5 | Φ100-140*(70-100) | 3-5 | 8-11 | 2200×900×3200 |

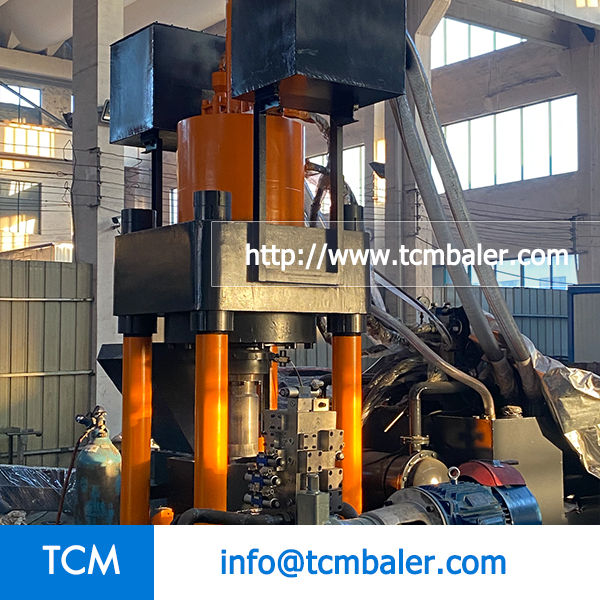

| XB500 | 37/50 | 500 | PLC | 5 | Φ120-150*(70-100) | 5-7 | 11-18 | 3500×1100×2300 |

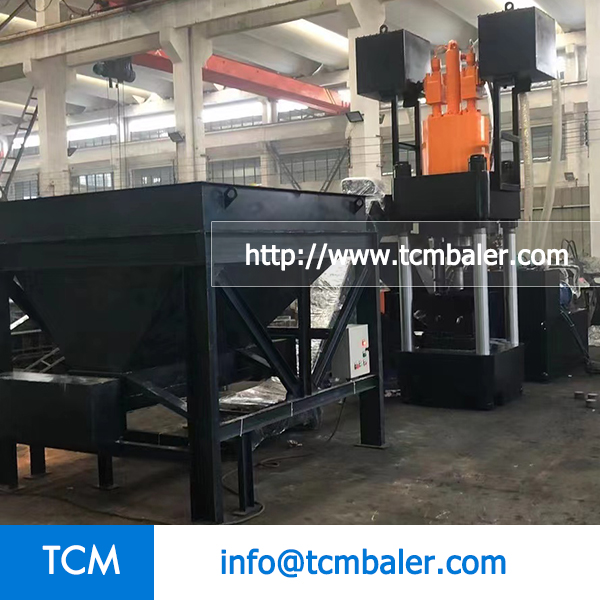

| XB630 | 60/80 | 630 | PLC | 5 | Φ130-160*(100-120) | 8-15 | 25-35 | 2700×1200×4100 |
